Performing linecuts using the Scissors class

Importing the Scissors class

from nxs_analysis_tools import Scissors, load_transform
from nxs_analysis_tools.datasets import cubic

sample_directory = cubic() # Download the example data into cache directory

from nexusformat.nexus import NXdata, NXfield
import numpy as np

Setting up a linecut - Method 1

You can set the data, linecut center, integration window, and integration axis when you initialize the Scissors object.

data = load_transform(f'{sample_directory}/cubic_15.nxs')

data:NXdata
  @axes = ['Qh', 'Qk', 'Ql']
  @signal = 'counts'
  Qh = float64(100)
  Qk = float64(150)
  Ql = float64(200)
  counts = float64(100x150x200)

scissors = Scissors(data, center=(0,0,0), window=(0.75,0.2,0.15), axis=None)

Setting up a linecut - Method 2

…or you can set them one by one after initializing the object.

scissors = Scissors()

scissors.set_data(data)

scissors.set_center((0,0,0))

scissors.set_window((0.75,0.2,0.15))

Performing a linecut

You can use .cut_data() to perform the cut, returning an NXdata object.

linecut = scissors.cut_data()

Plotting a linecut

The .integration_window attribute stores a tuple of slice objects over which the integration was performed.

scissors.integration_window

(slice(np.float64(-0.75), np.float64(0.75), None),
 slice(np.float64(-0.2), np.float64(0.2), None),
 slice(np.float64(-0.15), np.float64(0.15), None))

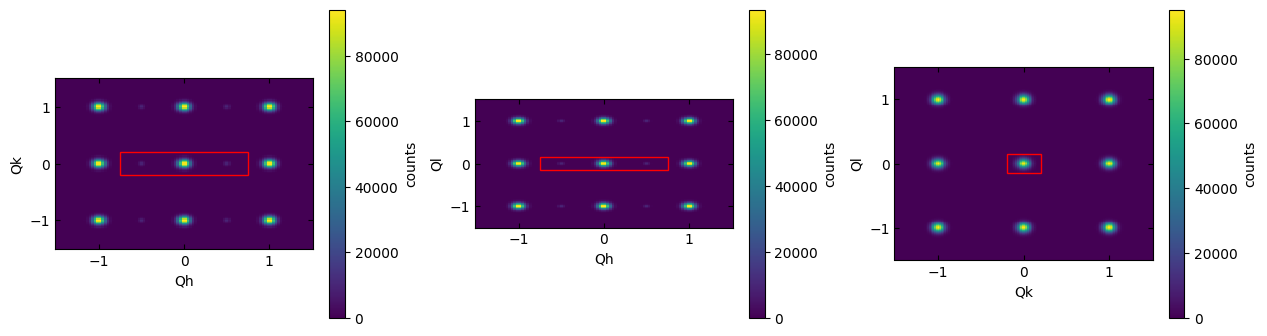

To show where the integration was performed, use the .plot_integration_window() method.

scissors.plot_integration_window()

(<matplotlib.collections.QuadMesh at 0x7e1312d96560>,
 <matplotlib.collections.QuadMesh at 0x7e1310b3ad10>,
 <matplotlib.collections.QuadMesh at 0x7e1310b9fca0>)

Use the optional width and height parameters to zoom in on the region of interest.

scissors.plot_integration_window(width=1.5, height=0.5, cbar=False)

(<matplotlib.collections.QuadMesh at 0x7e134c537550>,
 <matplotlib.collections.QuadMesh at 0x7e13109d9450>,
 <matplotlib.collections.QuadMesh at 0x7e13108043d0>)

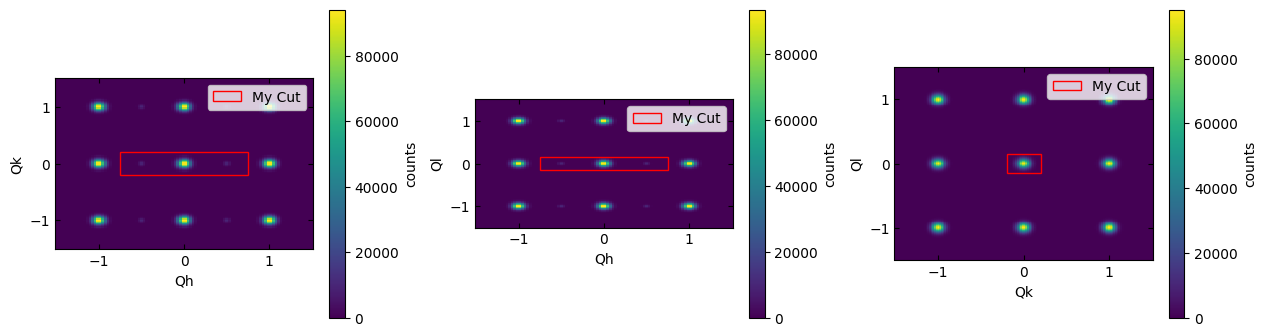

The label parameter allows you to specify a label for the highlighted region.

scissors.plot_integration_window(label='My Cut')

(<matplotlib.collections.QuadMesh at 0x7e1316a2a6b0>,
 <matplotlib.collections.QuadMesh at 0x7e131075d360>,
 <matplotlib.collections.QuadMesh at 0x7e13107bec20>)

The .plot() method of the NXdata object can be used to generate a basic plot of the linecut.

linecut.plot()
